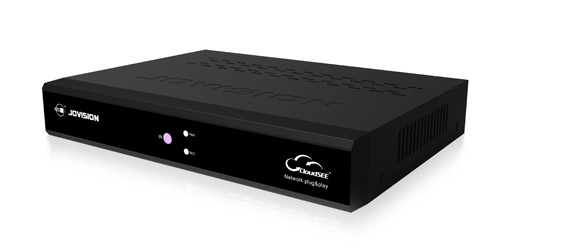

JVS 6004 S1 DVR
JVS 6004 S1 DVR
JVS 6004 S1 DVR
Item#: 6004S1

Product Description
The JVS-D6000-S1 series DVR is cost-effective standalone DVR. It includes two models JVS-D6004-S1 4CH DVR and JVS-D6008-S1 8CH DVR. This series of DVR supports CloudSEE solution(One key to connect/
Plug&Play); adopts dual stream, H.264 compression, embedded Linux real time O/S; Full D1 compression/
playback, HDMI video output; Integrates video capture, storage, compression, display, network transmission,
remote management, motion detection, remote PTZ control, external alarm input and other functions.

Besides, because the main board could be 24-hour standby, the series DVR is reasonability and efficiency
on energy utilization, low carbon and environment-friendly.

Model/Specification JVS-D6008-S1 Preview Video Channel 8 CH BNC Image System PAL/NTSC Playback Layout 1/2/4/8/9 screen Privacy masking Supports Night mode Supports Channel name characters 16 Record Compression H.264 Compression resolution Full D1 Types Manual/Timely record/Motion detection record/ Device alarm record Overwrite style Loop Coverage/Stop recording Before alarm No After alarm 1S~999S Playback Search mode Channel No./Recording Type/Date (Single or combined search) Playback mode 8 screen,8 D1 Playback control Single frame/backward (2S), backward (X4 X8 X16),acceleration (X2 X4 X8 X16), deceleration (X1/2 X1/4 X 1/8 X1/16) Audio Input 2 CH RCA Output 1 CH RCA Compression G.711 Monitoring VGA resolution 1024×768,1280×1024 Video output 1 CH VGA, 1CH CVBS, 1CH HDMI System Embedded Linux Internal memory 256MB Peripheral USB repair Supports USB interface 2 USB2.0 Control device Mouse,remote controller Power on/off through remote controller Power off Storage Inside SATA interface 1 USB(Back up) Supports USB Flash Disk /mobile Hard Disk FAT32 format. File format Log:*.txt; Picture:*.bmp; Recording:*.MP4 Log quantity 2000 Safety User quantity 64 local users, 64 network users Authorization control Authority Control Network Ethernet network RJ-45 port,10M/100M self-adaption. 3G wireless network Supports Network transmission mode Supports Second stream Max.Remote channel quantity 24 CH MAC display Supports Protocol TCP/IP,DHCP,PPPoE or UDP Autodial 3G/ADSL Supports Client-end monitoring CloudSEE client-end/web monitoring/mobile phone monitoring. Smart phone Operation system Android/iPhone Protocol TCP/UDP PTZ Input 4 group, 32 CH, Alarm box input Output 4 group, 32 CH, Alarm box output Video lost alarm Supports Alarm snapshot Supports Alarm notification Buzzer/Alarm device/PTZ call, send alarm to client-end /E-mail alarm PTZ control interface RS-485 PTZ preset points 255 Language Chinese/English Features Adopts CloudSEE technology, realizes one key to connection。 Dual stream makes sure that the video not only is recorded very clearly but also transmitted very smoothly. Full D1 compression/playback The video compression adopts H.264 technology. The compression quality can be adjusted. It supports displayer, monitoring and HDMI video output. It supports real time remote monitoring, remote PTZ control, remote video playback and remote download. It can be upgraded through USB device, FTP or Jovision website. It emphasizes on client’s customer experience. The interface is beautiful and friendly. It is easy and convenient to be operated. It supports CV, WebCC, VMS and mobile phone remote monitoring. All software are free to be downloaded.
