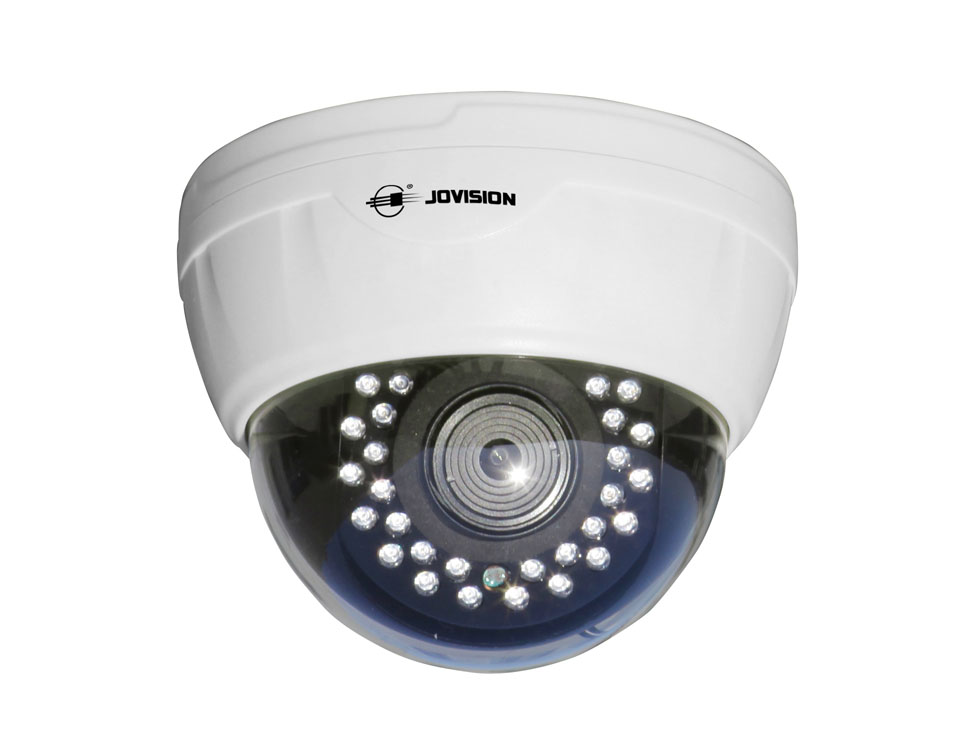

1MP Dome 720P Cloudsee HD IP Camera (JVS-N3DL-HB)
1MP Dome 720P Cloudsee HD IP Camera (JVS-N3DL-HB)
1MP Dome 720P Cloudsee HD IP Camera (JVS-N3DL-HB)
Item#: JVS-N3DL-HB
Regular price: $99.00
Sale price: $69.00

Product Description
Main Features
Jovision Patented CloudSEE technology for network remote surveillance, completely plug and play;
Support ONVIF protocol; ensure the intercommunity of network video monitoring products;
Video Resolution: 1280960; Video Compression Standard: H.264/JPEG
Tri-stream, users can choose stream and adjust resolution, frame rate and video quality;
2 Lattice Lights, supports IR-CUT, double light filter automatically switching, realizing night vision;
Supports motion detection and sending mail alert automatically;
Supports software updating from Jovision website or local;
Supports network parameters static setting/DHCP/ADSL;
Supports screen motion detection and region cover. 4 different zones could be set;
Supports restart after power off or accident problem;
Supports real-time remote monitoring, network user management and network time synchronization;
JNVR, CV, WebCC and mobile remote viewing optional.


Application
Applicable for remote monitoring of large warehouse, residence community, dock, square, school, station, park, etc.

Parameters
Imaging Sensor: 1/3" CMOS
Pixel Count: Max 1280x960
Video Compression Standard: H.264/JPEG
Video Frame Rate: Max 25fps
Video Code Rate: 128Kbps~8Mbps
Synchronization: Internal Synchronization
SNR: 44dB
Illumination: 0 LUX(with IR on)
Plastic Case

Lens
Lens Mount: CS
Lens: 4,6,8,12mm optional
Visual Angle: 4mm@F72, 6mm@F48.8, 8mm@F37, 12mm@F24.2
Focusing System: Manual

Functions
Privacy Masking: Supports 4 zone Masking
Exposure Control: Auto
Gain Control: Auto
Dynamic Range: 83.5dB
White Balance: Auto
Day-Night Function: Supports color to black
Video Adjusting: Supports Contrast, Brightness, aturation, Acuity, Screen Image adjusting
Periphery Interface: Audio Input, Video Output, USB interface, 485 Interface
Remote Operation: System Settings, Stream Control,Storage Management,Account Management, Network Administration
Motion Detection: Support
Detection Alarm: E-mail Alarm, Client-end Alarm
RS-485 Protocol: Not support

Network
Ethernet network: 10/100M Ethernet, CRJ45 Port
Stream: Tri-stream
Network Protocol: Standard HTTP.TCP/IP.ICMP.RTSP.RTP.UDP.RTCP.SMTP. FTP. DHCP.DNS.PPPOE, supports ONVIF protocol
Network Transmission: Imbedded with Jovision CloudSEE Transmission Protocol

Work Conditions
Temperature: -20C~+55C
Humidity: 10%~90%

Other Features
IR Light: 2 Lattice Lights
Power Supply: DC 12V
Power Consumption: Day: <3W; Night: <6W
Material: Plastic
Size(WxDxH): 80x80x80mm
Weight: 420g
Installation: Surface Mount
