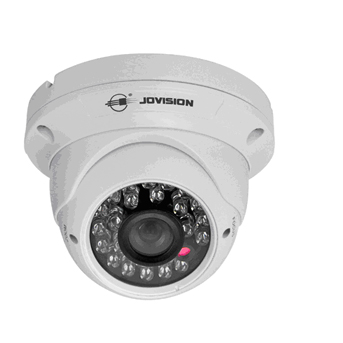

Model: JVS-N61-HC
Main feature：
CloudSEE，One key for remote view，network plug and play
Support ONVIF
Resolution：1280×720；Video standard：H.264/JPEG
Three stream code for customer to adjust resolution, kbps, video quality
Supports the exchange between CBR and VBR
Supports digital 3D digital noise reduction
Supports motion detection, sending email alert of motion detection automatically
Supports software update, USB, FTP and Jovision Website
Supports static configuration for network parameter/DHCP/ADSL
Supports motion detection/Privacy mark, max 4 parts
Supports auto reboot after power off/ inadvertent failures
Supports real time remote view/network management/ network time synchronization
Supports IR-CUT ,Day/night vision
JNVR、CV、WebCC、VMS、Mobile remote view
Application:
Dome camera to be installed in ceiling. Apply to the places which require HD image, small monitor regional and
artistic appearance. For example, court, prison, hotel, mall, super market, corridor, stair, office, hall, etc.
Model |
JVS-N63-HC |
|
Display |
Sensor |
1/4″CMOS |
Resolution |
Max1280×720 |
|
Video standard |
H.264/JPEG |
|
Video frame rate |
MAX 25fps |
|
Video kbps |
128Kbps～8Mbps |
|
Synchronization |
Internal Synchronization |
|
S/N ratio |
50dB |
|
Min Illumination |
0Lux(IR ON) |
|
lens |
Port |
CS |
Lens |
4,6,8,12mm |
|
Lens angle |
4mm:72°,6mm:48.8°,8mm:37°,12mm:24.2° |
|
Focus mode |
Manual |
|
Function |
Privacy mark |
Max 4 parts |
Exposure mode |
Auto |
|
Automatic Gain Control |
Auto |
|
Digital noise reduction |
3Ddigital noise reduction |
|
White balance |
Auto |
|
Day/Night vision |
IR-CUT，supply color/black exchange |
|
Video adjustment |
Support contrast,brightness,saturation,acutance and image |
|
Outside extension port |
Audio in |
|
Remote operation |
System setup, Code stream management, account management, network management |
|
Motion detection |
Support |
|
Alarm |
Email alert, Client-end system alert |
|
Network |
Ethernet |
10/100M，RJ45 port |
Stream code |
Three stream code |
|
networking protocol |
standard HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP, FTP, DHCP,DNS,PPPOE |
|
Access protocol |
Onvif |
|
Network transmission |
CloudSEE |
|
Local-storage |
USB storage |
|
Work temperature range |
-20℃～+55℃ |
|
Status |
Work humidity range |
10%～90% |
IR light |
LED lights |
|
Others |
Water proof |
IP66 |
Power supply |
DC 12V |
|
Power |
Day：＜3W;Night：＜6W |
|
Material |
Aluminum alloy |
|
Installation |
To be installed into ceiling and desk. |
|
