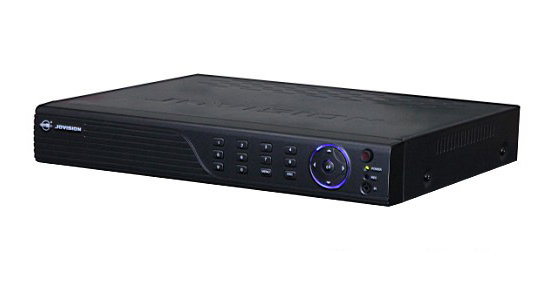

The JVS-D6024-S3 DVR independently developed by Jovison Ltd, support cloudSee
and dual-stream technology, adopting H.264 compression algorithm and Linux
real-time operating system. Video output transmit via HDMI ports with features
of excellent connection rate, good transmission effect, easy operation, etc.
It is optimal products for network remote monitoring, integrated with various
practical functions, such as audio and video playback, network transmission, and
alarm management. It is widely used in school, factory, supermarket, bank, traffic,
community, warehouse, water conservancy and other fields.

Jovision DVR Features:

1.All D1 Resolution.
2.CloudSEE technology,one-key remote and network plug & play.
3.H.264 Video compression technology.
4.Support audio compression to achieve real-time video monitoring function.
5.MP4 record file format.

Model/Specification		JVS-D6024-S3
Video&Audio	Video Input	24CH BNC
	Video Output	HDMI(1920*1080/1440*900/1280×1024/1024×768)  VGA（1920*1080/1440*900/1280×1024/1024×768）  CVBS（PAL：720×576/NTSC：720×480）
	Audio Input	4CH RCA
	Audio Output	1CH RCA
	Video Compression	H.264
	Video Preview Resolution	24CH D1
	Recording Resolution	D1/CIF
	Video BitRate	200kbps～1200kbps
	Audio Compression	G.711
Storage	HDD Type	SATA Interface
	HDD Number	2pcs（up to 4T/pcs）
	File Format	log：*.txt/picture：*.bmp/record：*.mp4
	Log Number	2000
	USB（backup）	Support U disk/Mobile HDD  FAT32 format
Record	Record Type	Manual,Scheduled,Alarm,Motion Detection
	Record Mode	Cyclic Covering/Stop Recording
	Playback Control	Play, Pause, Stop, Rewind, Fast play, Slow play, Digital zoom
	Search Mode	All/Channel/Record Type/Date(Alone or Combined query)
Network	Ethernet	10M/100M Adaptive
	3G wireless network card	Support
	Dual Stream	Support
	Max Remote viewing channel	24CH
	Protocol	TCP/IP，DHCP，PPPoE，UDP
	WIFI Module	Support MT7601
	AutoDial	Support
	Client-end	Cloudsee/WebCC/Android/IOS

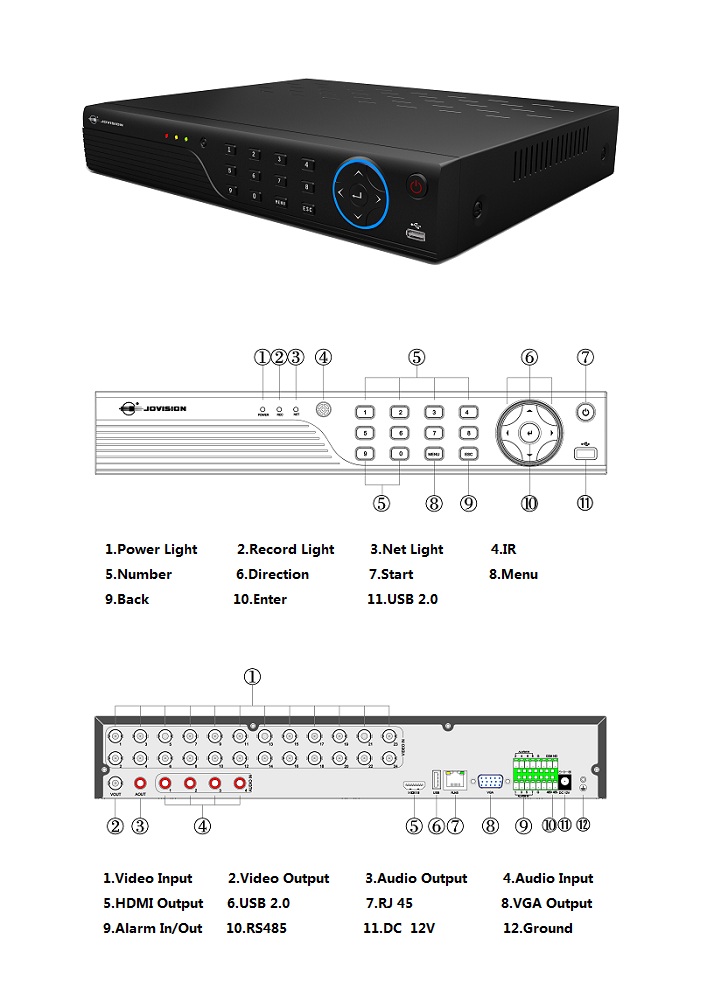

External	Network	1 RJ45 10M/100M adaptive Ethernet Interface
	USB Interface	2 USB 2.0 Interfaces
	Serial Interface	1 RS-485 interface
	Operation device	Mouse/Remote Control/Front Panel
	Remote Control	Startup/Shutdown
	Alarm In	8CH
	Alarm Output	1CH
Smart Phone	Mobile OS	Android/IOS
	Support Protocol	TCP/UDP
Features	Screen Layout	1/2/4/8/9/16/25 Screens
	Alarm notification	Buzzer/Alarm device/PTZ call, Send alarm to client-end/E-mail alarm
	Digital Zoom	Support
	USB Recovery	Support
	Voice Intercom	Support
	Night Vision Mode	Support
	Privacy Mask	Support
	Video Loss Alarm	Support
	Alarm Snapshot	Support
	Playback Layout	9 Screens
General	Working Temperature	-10℃～+55℃
	Working Humidity	10%～90%
	Power Supply	DC12V
	Power	≦15W（HDD not included）
	Language	Multi-Language
	Size(W×H×D)(mm)	370×60×270
	Weight(g)	≤2000
