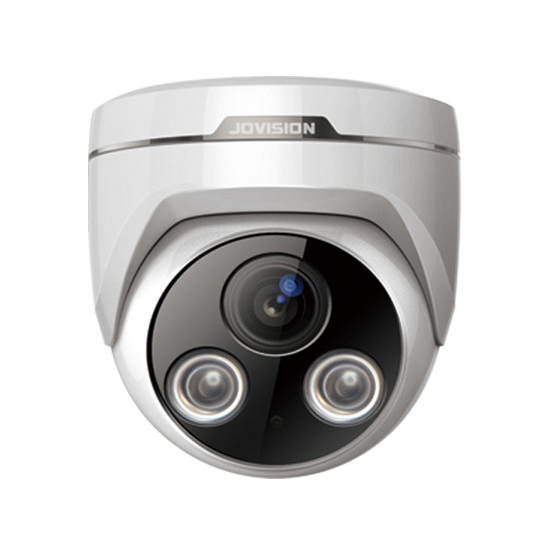

2MP Dome Long IR Range 1080P Cloudsee IP Camera (JVS-N83-HY)
 2MP Dome Long IR Range 1080P Cloudsee IP Camera (JVS-N83-HY) 2MP Dome Long IR Range 1080P Cloudsee IP Camera (JVS-N83-HY)
2MP Dome Long IR Range 1080P Cloudsee IP Camera (JVS-N83-HY)
Item#: JVS-N83-HY
Regular price: $199.00
Sale price: $169.00

Product Description
Brand-new State-of-the-art PCB Design
Comprehensive improvement of protection Level
Optimal Conductive & Heat Dissipation Effect
DWDR&3D DNR&AGC&BLC
Intelligent analysis for 1.3MP
Corridor mode for 2.0MP
IR range: 2PCS Array Lights upto 40M
Board Lens 3.6mm, 6mm optional/F2.0
Case: Plastic

Jovision IPC Features:
1. Video resolution:2.0MP.compression standard:h.264/JPEG.
2. 9V-21V Super Wide Working Voltage Range,Optimal surge protection.
3. IR cut filter with auto switch for day/night function.
4. Digital 3D DNR,Digital WDR,ROI,Defog,makes image clearer and more fluent.
5. Tri-streams for resolution,frame rate,video quality adjustment.
6. Support IP self-adaption function.
7. Support ONVIF protocol(2.4),compatible with other manufacturers products .
8. POE optional.


Model/Specification JVS-N83-HY
Camera  Image Sensor  1/2.7″CMOS
 Resolution  1920×1080
 Pixels  2.0MP
 Compression  H.264/JPEG
 Frame Rate  25fps~30fps
 Bitrate  128Kbps~10Mbps
 Synchronization  Internal
 SNR  55.7dB
 Min Illumination  0Lux(IR ON)
Lens  Lens Mount  M12
 Lens  3.6mm、6mm Optional
 Viewing Angle  3.6mm:105.94°、6mm:64.65°
 Focus Control  Manual
Function  Exposure Mode  Auto
 Gain Control  Auto
 White Balance  Auto
 Digital noise reduction  3D DNR
 OSD  Support
 Network TimeSyn  Support
 QR Code  Support generate device qr code
 for scanning to add
 Scheduled Restart  Support
 ROI  Support
 IR Sensitivity  Adjustable
 Defog  Support
 Privacy Mask  Support 4 rectangle areas
 Motion Detection  Support
 Video Adjust  Supports contrast, brightness,
 saturation, sharpness adjustment
 Scene  Support Indoor、Outdoor、Default、
 Soft scenes
 Day & Night  IR cut filter with auto switch,
 Support Color to Black
 Corridor Mode  Support
 Electronic screen  Supprot Exposure time setting,
 solve view electronic screen problem
 Night Self-Adaption  Support
 Wide Dynamic Range  Digital WDR
 Image setting  Mirror、Rotate
 IP Self-Adaption  Support
 Alarm  E-mail、Client
 Remote Operation  System、Stream、User、Network Management
 External Interface  Support Audio Input
Network  Ethernet  1 RJ45 10M/100M Adaptive Ethernet Interface
 Tri-Stream  Supprot
 Protocol  Support HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,
 SMTP,FTP,DHCP,DNS,PPPOE
 System Compatibility  ONVIF 2.4
 Transmission  Internal Cloudsee Protocol
 Browser  IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers
 Connection  32CH
 User Permission  Up to 13 users,Three level authority:
 Administrator、User、Visitor
General  Infrared Lamp  2 Lattice Lamps
 IR Distance  20m~40m
 Power Supply  DC 12V/3A
 PoE Power  Optional
 Working Temperature  -20℃~+60℃
 Working Humidity  10%~90%
 Power  Day:<3W     Night:<6W
 Material  Plastic

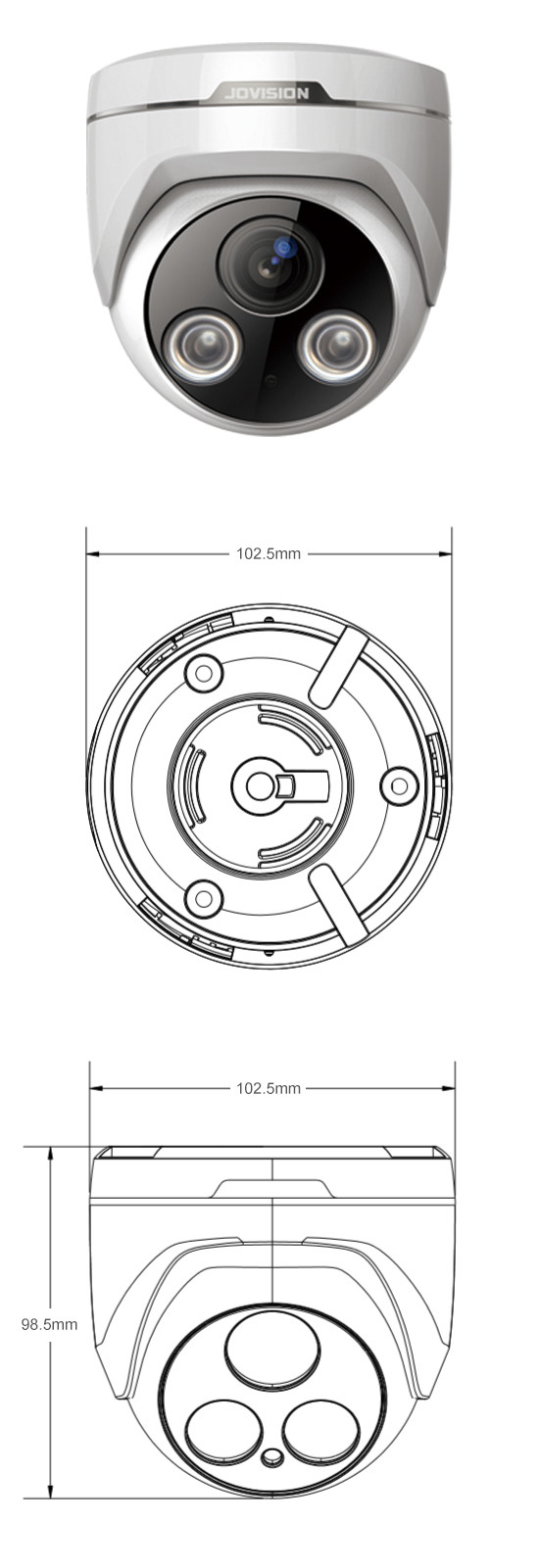

 Size((W×H×D)(mm)  102.5×98.5
 Weight(g)  220g
 Installation  Ceil Mounting
