Jovision IPC Features:
1. Video resolution: 1.3MP.compression standard:h.264/JPEG.
2. IR cut filter with auto switch for day/night function.
3. Digital 3D DNR,Digital WDR,ROI,Defog,makes image clearer and more fluent.
4. Tri-streams for resolution,frame rate,video quality adjustment.
5. Support IP self-adaption function.
6. Support ONVIF protocol(2.4),compatible with other manufacturers products .


PTZ Function：

1.Horizontal direction:360° , Vertical direction: -3~90°.
2.Horizontal speed:0°~30°/s,Vertical speed:0°~20°/s.
3.Maximum presets:220.
4.1 patrol line with 16 presets.
5.1 horizontally scanning line.
6.Support Keep Watch function.


Scenarios: Widely applicable to places with low light and big areas, such as banks,
hospitals, prisons,parks, streets, stations, communities, airport, square,
stadium, etc

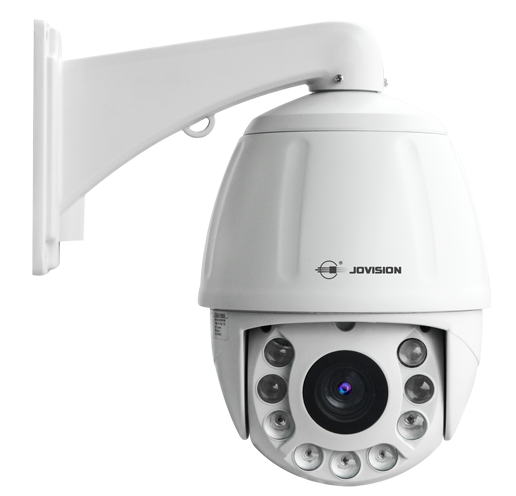

Model/Specification		JVS-N85-HV
Camera	Image Sensor	1/3″CMOS
	Resolution	1280×960
	Pixel	1.3MP
	Min Illumination	0Lux（IR ON）
	AWB	Support
	Gain Control	Support
	3D DNR	Support
	ZOOM	18X
	Compression	H.264/JPEG
	Frame Rate	25fps
	Bit Rate	307Kbps～8Mbps
	Focus Control	Auto/Manual
	Focus Length	4.7±5%～84.6±5%mm，18X
Function	WB	Auto
	3D DNR	Support
	OSD	Support
	Network TimeSyn	Support
	Log Control	view、print and backup logs
	QR Code	Support generate device qr code  for scanning to add
	Restart	Scheduled restart
	ROI	Support
	Defog	Support
	Privacy Mask	Support 4 rectangle areas
	Motion Detection	Support
	Video Adjust	Supports contrast, brightness,  saturation, sharpness adjustment
	Scene	Support Indoor、Outdoor、Default、  Soft scenes
	Day & Night	IR cut filter with auto switch，  Support Color to Black
	Electronic screen	Supprot Exposure time setting,  solve view electronic screen problem
	Image setting	Mirror、Rotate
	IP Self-Adaption	Support
	Alarm	E-mail、Client
	Remote Operation	System、Stream、User、Network Management,PTZ function
	Power Off Memory	Support
	Safety	safety hinge,20cm
PTZ	Rotation Angle	Horizon：0°～360°；Vertical：-3°～90°
	Horizontal speed	0°～ 30°/S
	Vertical speed	0°～ 20°/S
	Preset	220个
	Auto Cruise	1 line
	Keep Watch	1 preset
	Horizontal scan	1 line
Infrared	Infrared Lamp	9 Lattice Lamps
	IR distance	120m～150m
	Voltage	DC 12V
	Current	1A
	Wavelength	850nm
	Power	9w
Network	Ethernet	1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface
	Stream	Tri-stream
	Protocol	HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE
	ONVIF	Support
	Transmission	Internal Cloudsee Protocol
	Browser	IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers
	Connection	32CH
	User Permission	Up to 13 users，Three level authority：  Administrator、User、Visitor
General	Power Supply	12V/4A
	Temperature	-20℃～+60℃
	Working Humidity	<95%
	Waterproof	IP66
	power	≤20W
	Material	Aluminum

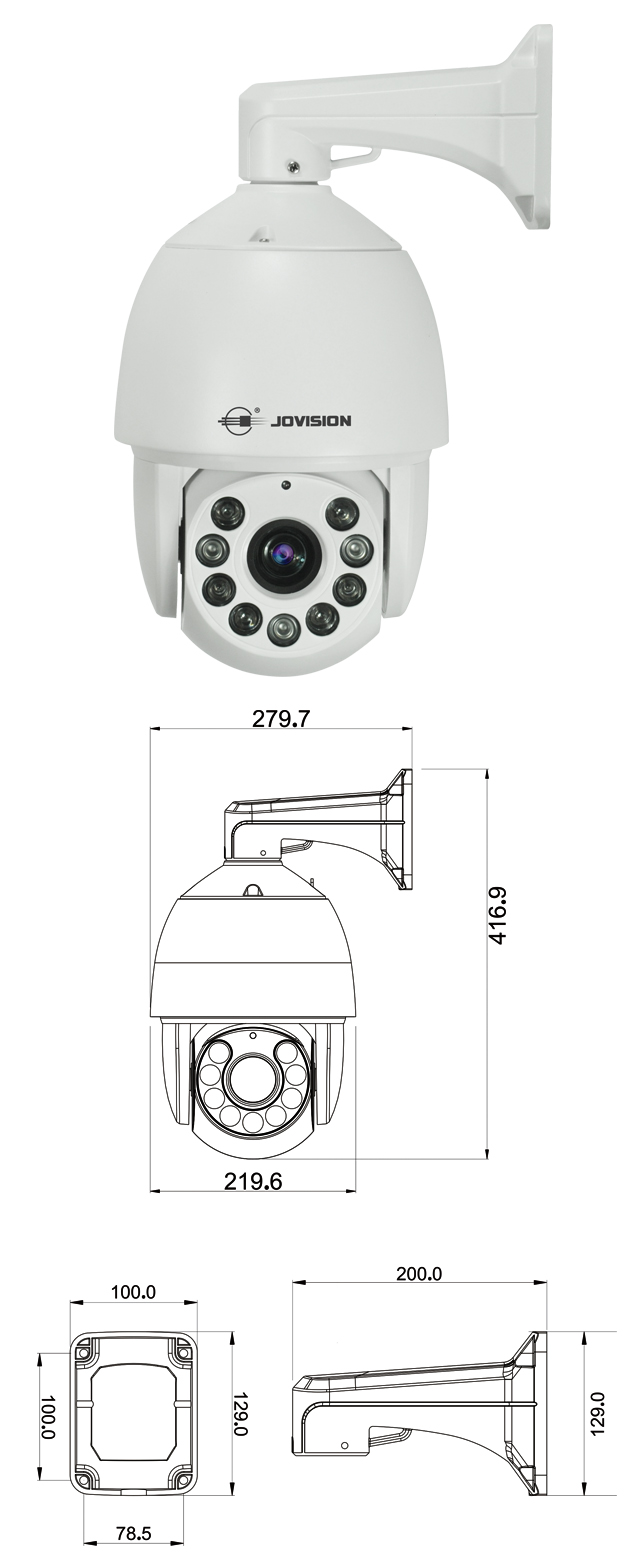

	Size(W×D×H)(mm)	288×341×354
	Weight(g)	4800g
	Installation	Rack Mounting
