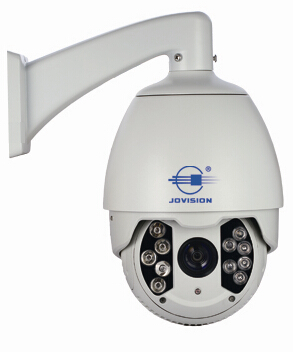

1.3MP 960P Cloudsee IP 10x PTZ Camera (JVS-N85-MINI)
1.3MP 960P Cloudsee IP 10x PTZ Camera (JVS-N85-MINI)1.3MP 960P Cloudsee IP 10x PTZ Camera (JVS-N85-MINI)
1.3MP 960P Cloudsee IP 10x PTZ Camera (JVS-N85-MINI)
Item#: JVS-N85-MINI
Regular price: $529.00
Sale price: $449.00

Product Description
Jovision PTZ Features:
1. Video resolution: 1.3MP.compression standard:H.264/JPEG.
2. IR cut filter with auto switch for day/night function.
3. Digital 3D DNR,Digital WDR,ROI,Defog,makes image clearer and more fluent.
4. Tri-streams for resolution,frame rate,video quality adjustment.
5. Support IP self-adaption function.
6. Support ONVIF protocol(2.4),compatible with other manufacturers products .
7. Supports CloudSEE network set up Plug and Play.

PTZ Function:
1.Horizontal direction:360 , Vertical direction: 0~90.
2.Horizontal speed:6~30/s,Vertical speed:5~17/s.
3.Maximum presets:128.
4.1 patrol line.
5.1 horizontally scanning line.
6.Support Keep Watch function.

Scenarios:
Widely applicable to places with low light and big areas,
such as banks, hospitals, prisons,parks, streets,
stations, communities, airport, square, stadium, etc.

Model/Specification JVS-N85-MINI
Camera  Image Sensor  1/3″CMOS
 Resolution  1280×960
 Pixel  1.3MP
 Min Illumination  0Lux(IR ON)
 AWB  Support
 Gain Control  Support
 3D DNR  Support
 Digital Zoom  16X
 Compression  H.264/JPEG
 Frame Rate  25fps
 Bit Rate  307Kbps~8Mbps
 Focus Control  Auto/Manual
 Focus Length  5.1±5%~51±5%mm,Optical Zoom 10X
Function  WB  Auto
 3D DNR  Support
 OSD  Support
 Network TimeSyn  Support
 Log Control   view、print and backup logs
 QR Code  Support generate device qr code
 for scanning to add
 Restart  Scheduled restart
 ROI  Support
 Defog  Support
 Privacy Mask  Support 4 rectangle areas
 Motion Detection  Support
 Video Adjust  Supports contrast, brightness,
 saturation, sharpness adjustment
 Scene  Support Indoor、Outdoor、Default、
 Soft scenes
 Day & Night  IR cut filter with auto switch,
 Support Color to Black
 Electronic screen  Supprot Exposure time setting,
 solve view electronic screen problem
 Image setting  Mirror、Rotate
 IP Self-Adaption  Support
 Alarm  E-mail、Client
 Remote Operation  System、Stream、User、Network Management,PTZ function
 Power Off Memory  Support
 Safety  safety hinge,20cm
PTZ  Rotation Angle  Horizon:0°~360°;Vertical:0°~90°
 Horizontal speed  6°~ 30°/S
 Vertical speed  5°~ 17°/S
 Manual speed High,Middle,Low
 Preset  128
 Auto Cruise  1 line
 Keep Watch  Support
 Limit scan  Support
Infrared  Infrared Lamp  6 Lattice Lamps
 IR distance  40m~50m
 Wavelength  850nm
Network  Ethernet  1 RJ45 & Antenna 10M/100M Adaptive Ethernet Interface
 Stream  Tri-stream
 Protocol  HTTP,TCP/IP,ICMP.RTSP,RTP,UDP,RTCP,SMTP,FTP,DHCP,DNS,PPPOE
 ONVIF  Support
 Transmission  Internal Cloudsee Protocol
 Browser  IE8+,Chrome18+,Firefox5.0+,Safari5.02+ browsers
 Connection  32CH
 User Permission  Up to 13 users,Three level authority:
 Administrator、User、Visitor
General  Power Supply  12V
 Temperature  -20℃~+60℃
 Working Humidity  <95%
 Waterproof  IP66
 power  day:≤20W
 Material  Aluminum

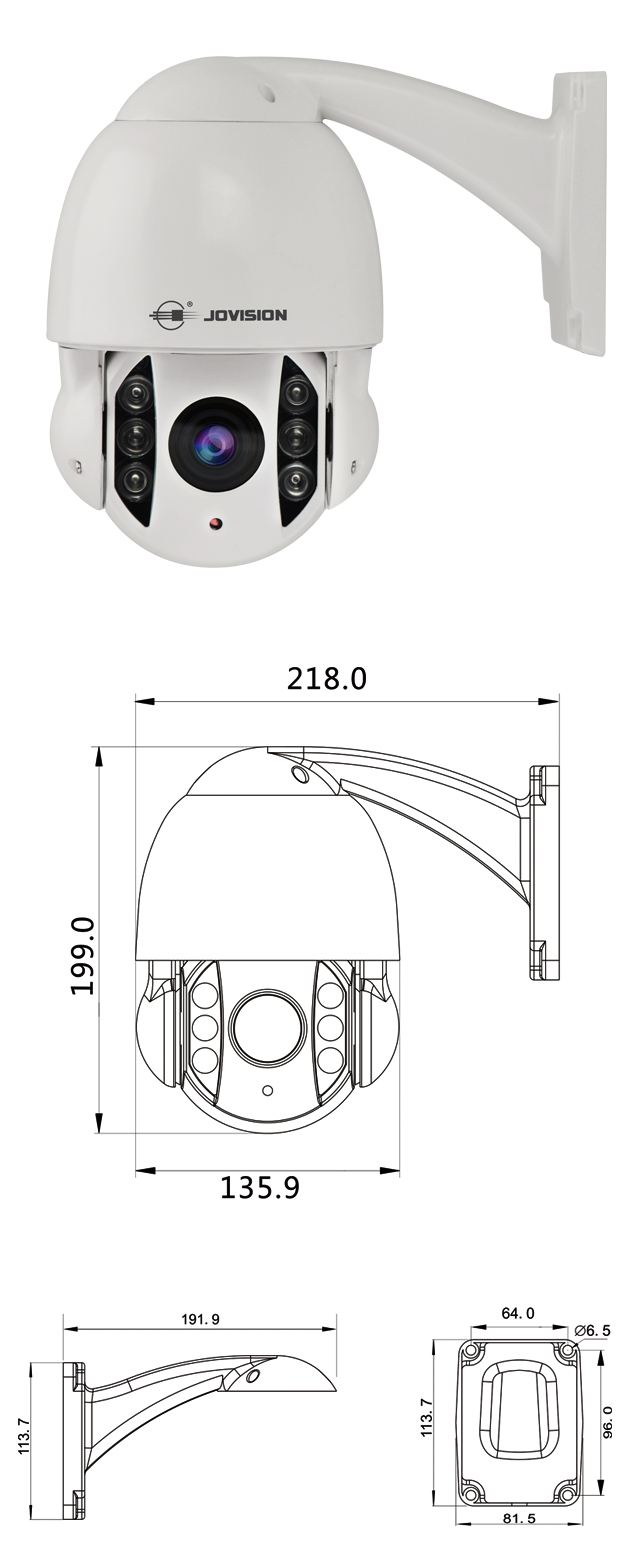

 Size(W×D×H)(mm)  235×235×230
 Weight(g)  1800g
 Installation  Rack/Ceil Mounting
